ASA Synthetic Resin Roof Tile
ASA PVC Anti-UV Roof Tile
APVC Anti Corrosion Roof Tile
Polycarbonate Roof Tile
PVC Transpatent Roof Sheet
PVC Transpatent Roof Sheet
Business type: Manufacturer
Brand: YUEHAO
Origin: Foshan, GD, China
Target market: South America, Mid-East, Africa, Asia
Grade: A,B
MOQ: 200 SQM
Supply ability: 10000SQM/DAY
Delivery time: 3 to 15 days
Certificate: ISO, SGS ,FQM,MA,AL
Loading port: Sanshui port
Payment terms: L/C, D/A, D/P, T/T, Western Union, Money Gram
Packing: Nude Packing or pallet packing, customized.
PVC Transpatent Roof Sheet
PRODUCTĀ ADVANTAGES
Ā
Ā
TECHNICALĀ DATA
Ā
No.
Content
Unit
Standard
Result
Ā
Ā
1
Ā
Appearance quality
Ā
-----
Homogeneous color, no bubble, no crack and no visible Ā Ā materialĀ in surface. Clean and no rag Ā Ā in telos.
Eligible
Eligible
Regular wave shape for two sidesā lapping
Eligible
2
Length
mm
+10
+2
Eligible
3
Width
mm
+5
+1
Eligible
4
Thickness
mm
Ā±0.2
0.06
Eligible
5
Wave height
mm
Ā±1.2
+0.04
Eligible
6
Wave space
mm
Ā±2.0
0
Eligible
7
Density
Kg/m3
1000~1450
1442
Eligible
8
Tensile strength
Ā
ā„20
26
Eligible
9
Elongation at break
Ā
ā„20
38
Eligible
10
Falling ball impact (1kg,1.5m)
Ā
Should be no hole and crack
/
Eligible
11
Acid resistance(Volume fraction:20% NaOH,24H)
Ā
Should be no distinctive color change and no deformation
/
Eligible
12
Alkali resistance (mass fraction 20% NaOH,24H)
Ā
Should be no distinctive color change and no deformation
/
Eligible
13
Bending
Ā
ā¤50
12
Eligible
14
Oxygen Index
%
ā„32
35
Ā
Ā

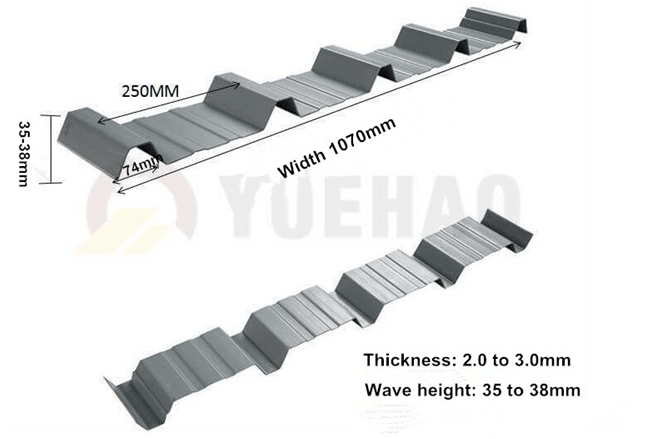

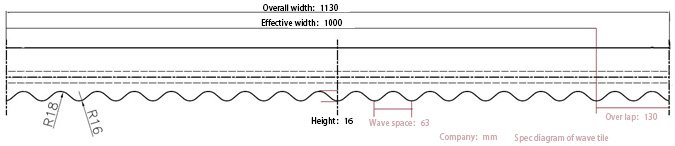

SPECIFICATION
Ā
PVC Transpatent Roof Sheet
PVC Transpatent Roof Sheet
INSTALLATION OF PVC ROOFING SHEET CONSTRUCTION BUILDING MATERIALS
Ā
PVC Transpatent Roof Sheet
1. Please use a fine -toothed saw to cut PVC.
2. Can Ā drill with hand drill or power drill. When drilling , the bottom should be supported to present swaying, and the hold diameter should be bigger than screw by 50%. When fixing screws, special rubber mat should be placed under the tile, and the screws should be properly fasten and should not be too tight.
3. The frame structure uses structures steel or wood as purine, requiring neat, parallel and evenly spaced purlines without deforming.
Ā
INSTALLATION
PVC Transpatent Roof Sheet
Normally, at least one corrugation for horizontal overlap, 20-25 cm for lengthwise overlap. In strong wind climate zone, two corrugation for horizontal overlap and more than 25 cm lengthwise overlap is recommended. Roof slope less than 20 degree and 40cm lengthwise overlap is suggested !
PROCESS
Ā
PACKING & LOADING
Ā
Nude packing for FCL loading
Ā
Ā Ā
Ā Ā
Ā Ā
Ā Ā
PE bag packing for bulk loading
Ā
Ā Ā
Ā Ā
Ā
Ā

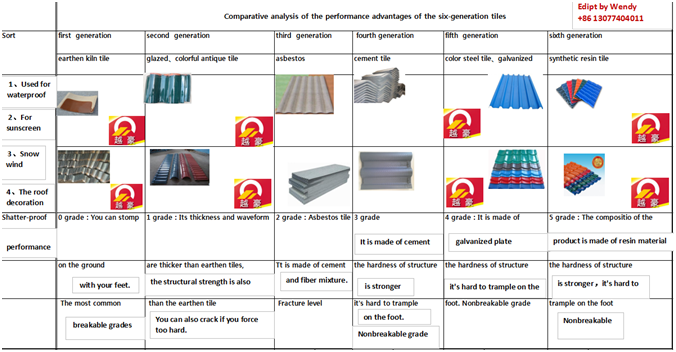

COMPARISON OF OTHER ROOFING SHEET
